Introduction

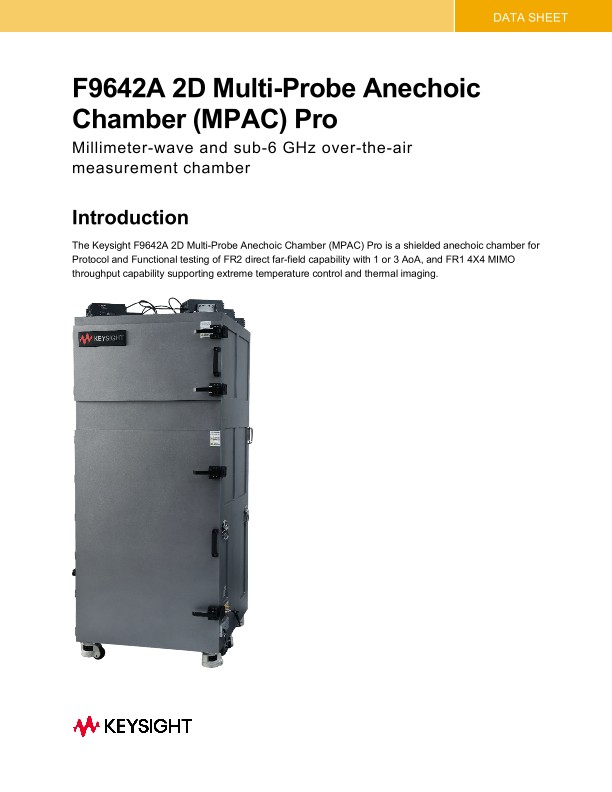

The Keysight F9642A 2D Multi-Probe Anechoic Chamber (MPAC) Pro is a shielded anechoic chamber for Protocol and Functional testing of FR2 direct far-field capability and FR1 4X4 MIMO throughput capability supporting extreme temperature control and thermal imaging.

Overview

The chamber includes connections for up to six FR2 RF heads connected to a range of up to three feed antenna locations, arranged in an arc to simulate variable angles of arrivals or multiple beams. The FR2 antennas are located within the angle of +/-15° from the positioner rotation center, creating the angle of 30° for a range length of 106 cm.

There are four dual polarization FR1 antennas located in each corner of the roof with room for polarization rotation to provide maximal signal de-correlation.

Thermal camera is also located on the roof to give unobstructed view to Device-Under-Test (DUT).

The DUT is placed in a software-controlled positioner, capable of providing full spherical coverage.

Key Features

The key features of Keysight F9642A 2D MPAC Pro are:

• FR2 protocol, RF and functional testing with three Angle-of-Arrivals (AoA) within a 30° angular separation

• FR1 functional testing with up to 4x4 MIMO throughput

• Thermal camera

• Software to provide positioner control, Vector Network Analysis (VNA) based chamber calibration, and coordinate system mapping

• Laser-guided crosshair for accurate DUT placement

• Fully shielded and filtered

• Low path loss

• Temperature maintenance through forced air ventilation

• Lit interior facilitates working inside the chamber

Supported Use Cases

Keysight F9642A 2D MPAC Pro supports, for example, the following use cases:

• Software protocol testing with various antenna configurations

• RF module testing (white box testing)

• Beamforming of up to three AoAs

• Antenna testing (white box testing)

• Wireless cable connection (black box testing)

• Protocol / Demod / 1 AoA RRM (black box testing)

• FR1 4X4 MIMO data throughput

• DUT surface temperature measurement (Hot Spot)

Contact Keysight to discuss about further use cases as the OTA Test Bed performance is a task to evaluate with care.

System Specifications

F9642A: Anechoic chamber

Description	Specification (nominal)	Supplemental information
Construction	NA	Aluminum frame and aluminum panels
Height (external / internal)	1880 mm (74.0”) / 1628 mm (64.1”)	With RRHs and without positioner
Width (external / internal)	750 mm (29.5”) / 733 mm (28.9”)	775 mm (30.5”) with handles
Depth (external / internal)	906 mm (35.7”) / 880 mm (34.6”)	957 mm (37.7”) with door handles and locks
Weight	214 kg (472 lb)	Transportation weight 320 kg (705 lb) with U-positioner and without RRHs
Anechoic treatment	50 mm (2”) corrugated anechoic foam
Enclosure frequency range	700 MHz – 68 GHz
Operating voltage	48 V DC	External power supply 110 – 230 V
Power consumption	<220 W
DUT positioning	Laser-based Wavelength: 635 nm Max power: 7 mW	Crosshair laser for exact positioning of the DUT
Illumination	LED-based
Camera	USB output
Ventilation	Two honeycomb structures with 1 x fan for forced air flow
Power ports	1 x DC power 1 x DC power	2.1 x 5.5 mm (for chamber) 2.1 x 5.5 mm (for DUT)
Connectivity ports	4 x USB 3.0 1 x RJ45 Ethernet	1 x USB 3.0 for Positioner, camera RJ45, PoE+ Reserved for Thermal Camera. Compliant for power over the ethernet requirement.
Operating temperature	22 ± 10 °C (71 ± 18 °F)
Relative humidity	50 % RH ± 20 % RH
