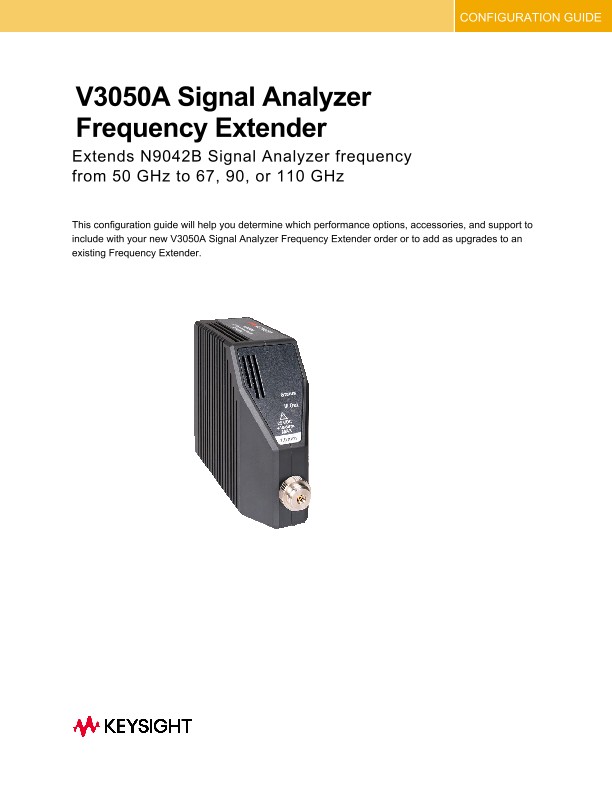

V3050A Signal Analyzer Frequency Extender

Configuration Guides

Included in the Base Product

Description	Part number	Additional information
Getting Started and Specification Guide	V3050-90001	Provides instructions on usage, safety, troubleshooting, specifications, and general information.
Test certificate		Provides information regarding the instrument calibration.
Transit case	V3050-80008
Torque wrench	8710-2819	Wrench-Torque Special Double-end 14mm-open end 4 and 10-in-lb
Ruggedized adapter included with Options F09 and F11	Y1900B	Adapter, 1.0 mm ruggedized (f) to 1.0 mm (f), DC to 120 GHz
Ruggedized Adapter included with Option F06	Y1901B	Adapter, 1.0 mm ruggedized (f) to 1.85 mm (f), DC to 67 GHz
Adapter	33311-82005	Adapter, 2.4 mm (f) to 2.4 mm (f. Used to connect RF Input cable on the interconnect cable harness to input connector on the signal analyzer.
Baseplate, mount	V3050-60005	Heavy baseplate that attaches to the Frequency Extender to hold the unit upright.
Interconnect cable harness	V3050-60004	Cable assy, integrated 4 cable bundle, 1 m
Security lock	V3050-60006	Clamps around the input connector and ruggedized adapter to prevent theft or the ruggedized adapter.

Configure Your New V3050A Signal Analyzer Frequency Extender

The V3050A Signal Analyzer Frequency Extender is usable only with the N9042B UXA X-Series Signal Analyzer and extends its frequency range up to 110 GHz. Option N9042B-EXW is required on the N9042B UXA to enable V3050A support. Different cable lengths are supported through the N9042B UXA user interface. See the V3050A Signal Analyzer Frequency Extender data sheet for more information (3122-2019.EN).
