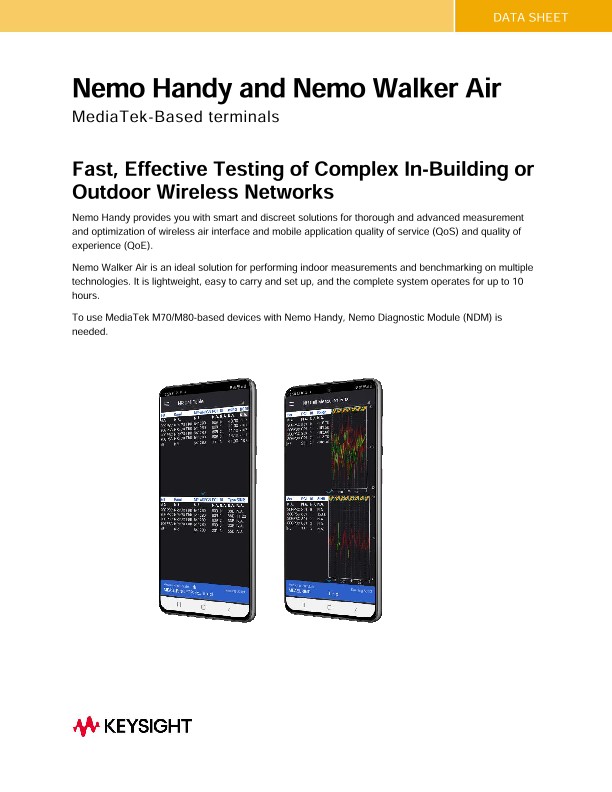

Fast, Effective Testing of Complex In-Building or Outdoor Wireless Networks

Nemo Handy provides you with smart and discreet solutions for thorough and advanced measurement and optimization of wireless air interface and mobile application quality of service (QoS) and quality of experience (QoE).

Nemo Walker Air is an ideal solution for performing indoor measurements and benchmarking on multiple technologies. It is lightweight, easy to carry and set up, and the complete system operates for up to 10 hours.

To use MediaTek M70/M80-based devices with Nemo Handy, Nemo Diagnostic Module (NDM) is needed.

5G NR

Serving cell information

• Number of serving cells

• Number of secondary serving cells

• Cell type

• Band

• Band type (FDD/TDD)

• SSB NR-ARFCN/channel

• SSB NR-ARFCN frequency

• SSB GSCN

• Offset to point A (SA only)

• NR cell ID

• PCI

• Beam index

• Beam type

• Measurement type (for beam)

• C-RNTI

• Packet technology

• Packet state

• RRC state (NR/LTE)

• RSRP (NR serving cell)

• RSRP (NR neighbor)

• RSRQ (NR serving cell)

• RSRQ (NR neighbor)

• SINR (NR serving cell)

• SINR (NR neighbor)

• RSSI (NR serving cell)

• RSSI (NR neighbor)

• Pathloss PUCCH

• Pathloss PUSCH

• DL NR-ARFCN Point A

• UL NR-ARFCN Point A

• BWP type (DL/UL)

• BWP ID

• BWP numerology (SCS)

• BWP bandwidth (PRB)

• Resource grid NR-ARFCN (NR)

• Resource grid bandwidth (kHz, PRB)

• NR-ARFCN frequency (BWP)

• NR-ARFCN (BWP)

• TDD pattern size

• TDD pattern 1 DL

• TDD pattern 1 UL

Physical channel information (for each serving cell)

• PUSCH throughput

• PUSCH throughput (LTE+NR)

• RB ID

• TX power (NR)

• TX power PUCCH

• TX power PUCCH adjustment

• TX power PUSCH

• TX power PUSCH adjustment

• Pathloss PUSCH (NR)

• Pathloss PUCCH (NR)

Link adaptation (for each serving cell)

• PDSCH MCS CW0

• PDSCH MCS distribution

• PUSCH MCS CW0

• PUSCH MCS distribution

• PDSCH rank

• PDSCH rank distribution (count)

• PUSCH rank

• PUSCH rank distribution (count)

• PDSCH PRBs (count)

• PUSCH PRBs (count)

• PDSCH PRB distribution (count)

• PUSCH PRB distribution (count)

• PDSCH modulation CW0

• PDSCH modulation distribution

• PUSCH modulation CW0

• PUSCH modulation distribution

• PDSCH TBS CW0

• PUSCH TBS CW
