Fundamental Problem Solving Using a Modern Oscilloscope

课程
6 商品

In this course, we'll cover how to make the most of the advanced measurement capabilities available in today's modern oscilloscopes.

Learn:

Advanced scope use cases like masking and error-finding techniques
Application-specific examples like power rail measurements and compliance testing
Next-level testing capabilities with a Keysight EXR oscilloscope

Explore Keysight oscilloscopes

查看

Lesson 1 - Oscilloscope Triggering Fundamentals

Introduces the basic concepts of oscilloscope triggering, such as edge, pulse, and pattern triggering. It also covers advanced triggering techniques, such as runt, glitch, and runt-glitch triggering.

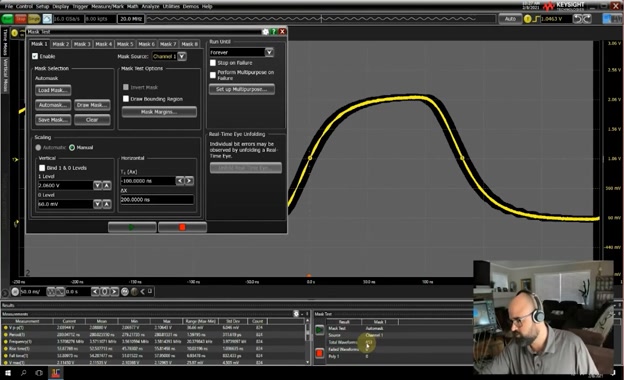

Lesson 2 - Measurements, Auto-Masking and Error Finding Techniques

Teaches you how to make basic and advanced measurements with an oscilloscope, such as voltage, frequency, and rise time. It also covers auto-masking and error-finding techniques, which can help you identify problems in your circuit.

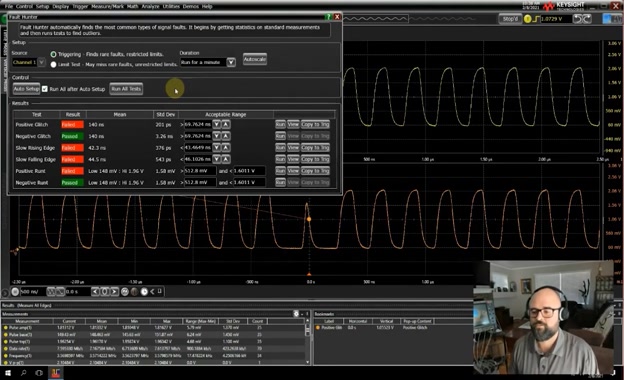

Lesson 3 - Triggers, Measurements, Eye Plots

Build on the concepts from the previous lessons by showing you how to use triggers and measurements to create eye plots.

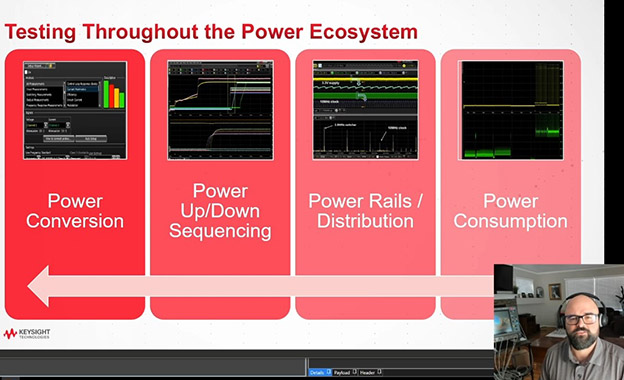

Lesson 4 - Protocol Layer and Compliance Testing

Cover some of the more advanced features of oscilloscopes, such as protocol layer analysis, compliance testing, and power measurements. It also shows you some of the "cool" features that are available on some oscilloscopes, such as video streaming and remote control.

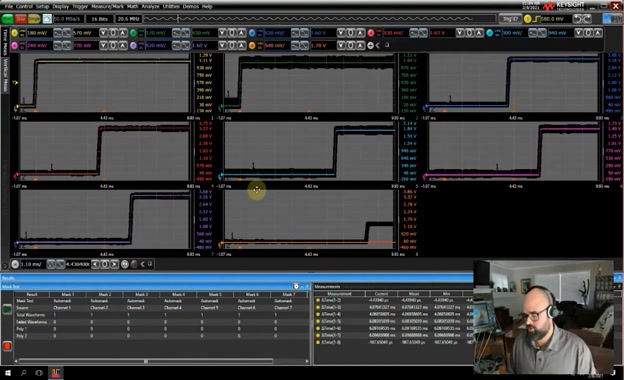

Lesson 5 - The EXR-Series Oscilloscope's Specifications

An overview of the specifications of the EXR-Series oscilloscopes, showing you how to work with the oscilloscope remotely or offline.

Lesson 6 - Conclusion

Thank you for watching. We hope you learned all you need to know about EXR-Series oscilloscopes.
