How to Design an RF Power Amplifier

课程
7 商品

This course provides a foundation for understanding how power amplifier circuits work.

Learn:

Why Power Amplifiers are categorized into classes and how they are different
How to develop your design approach and run a simulation for the amplifier class you are designing
Keysight Advanced Design System with bundle W3606B for Freq/time domain non-linear designs with digitally modulated signals and RFPro EM simulation

查看

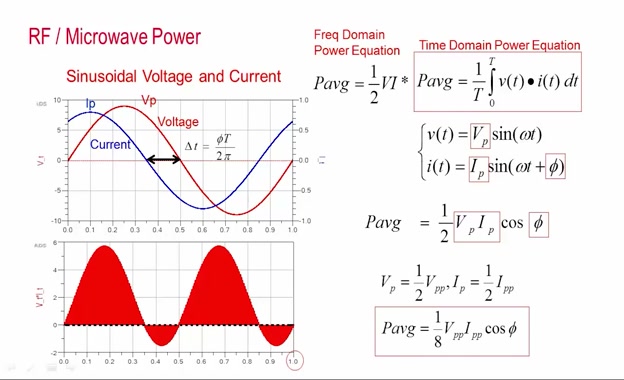

Lesson 1 - How to Design an RF Power Amplifier

Introduces RF power amplifiers and their key parameters. This lesson discusses what RF power amplifiers are, how they work, and the different parameters that are used to characterize them.

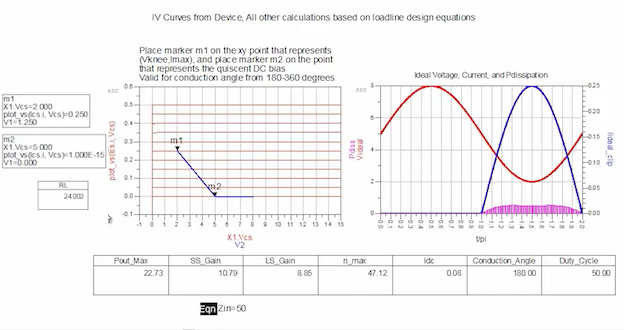

Lesson 2 - Class A, AB, and B Power Amplifiers

Learn the different classes of RF power amplifiers and how they work. RF power amplifiers are devices that amplify RF signals. There are six different classes of RF power amplifiers: Class A, Class B, Class AB, Class C, Class D, and Class E. Each class of amplifier has its own advantages and disadvantages.

Lesson 3 - Class F Power Amplifiers

Examine Class F RF power amplifiers, which are known for their high efficiency.

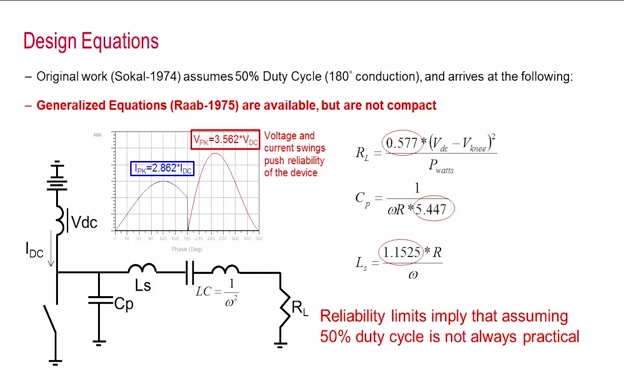

Lesson 4 - Class E Power Amplifiers

Examine Class E RF power amplifiers, which are known for their high efficiency and linearity.

Lesson 5 - Class J Power Amplifiers

Explore the design process for RF power amplifiers. It covers the different steps involved in designing an amplifier, such as choosing the amplifier class, selecting the components, and simulating the amplifier. The lesson also discusses the importance of stability in RF power amplifiers.

应用文章

Designing an Advanced MMIC Amplifier

There are many design steps required for the development and manufacture of MMIC circuits, as illustrated in the MMIC Design Flow. Advanced Design System (ADS) is a central part of the complete MMIC design flow, and is used throughout this process. This application note illustrates, through the design of an MMIC amplifier, several of the common problems faced in designing, simulating, and producing a physical layout of an MMIC circuit, as well as the validation steps that are needed to verify that the physical layout still produces the desired result.

应用文章

Extracting Measurement based Simulation Models for Power Amplifiers

This application note will describe how to build simulation models for power amplifiers using Keysight’s ANN engine.
