Oscilloscope Probes 101

课程
9 商品

In this course, we will learn the essentials of oscilloscope probing. Discover which probe you should use and how to minimize a probe's effect on your measurements.

Learn:

The benefits and drawbacks of different probe types
Common probing mistakes engineers make
How to choose the best probe for your measurements

查看

Lesson 1 - Effects of Oscilloscope Probe Loading

Introduces the concept of probe loading, and explains how it can affect your oscilloscope measurements. It also discusses how to minimize the effects of probe loading by using the correct probe and by making careful connections.

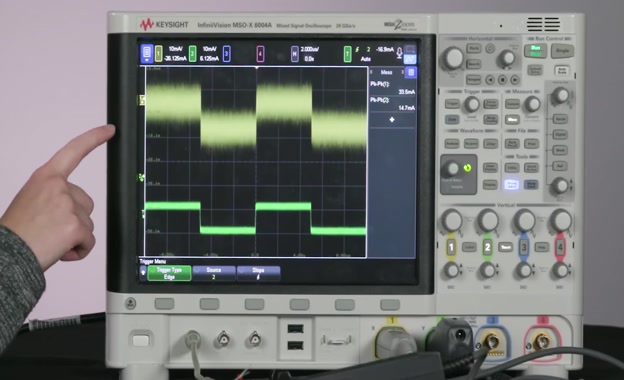

Lesson 2 - How to Measure Current with an Oscilloscope

Demonstrates how to use an oscilloscope to measure current. It discusses the different types of current probes, and how to choose the right probe for your measurements.

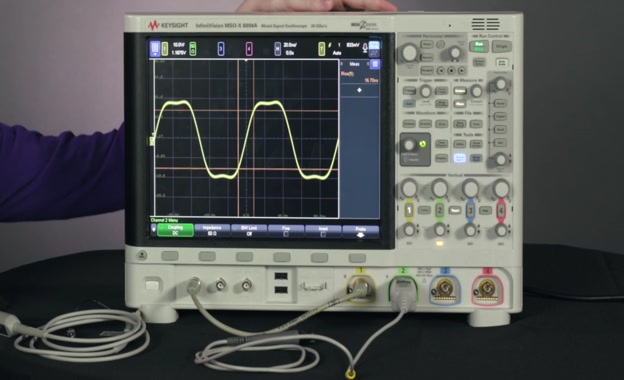

Lesson 3 - Active vs. Passive Oscilloscope Probes

Compares active and passive oscilloscope probes. It discusses the advantages and disadvantages of each type of probe, and helps you decide which type of probe is right for your needs.

Lesson 4 - Single Ended vs. Differential Oscilloscope Probes

Compares single-ended and differential oscilloscope probes. It discusses the advantages and disadvantages of each type of probe, and helps you decide which type of probe is right for your needs.

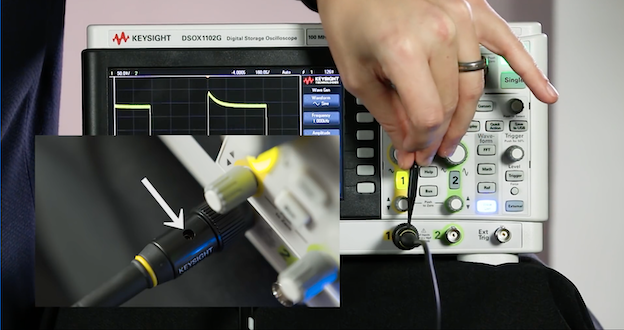

Lesson 5 - Probe Compensation

Discusses probe compensation, and explains how it can improve the accuracy of your oscilloscope measurements. It also discusses how to compensate your probes, and how to verify that your probes are properly compensated.

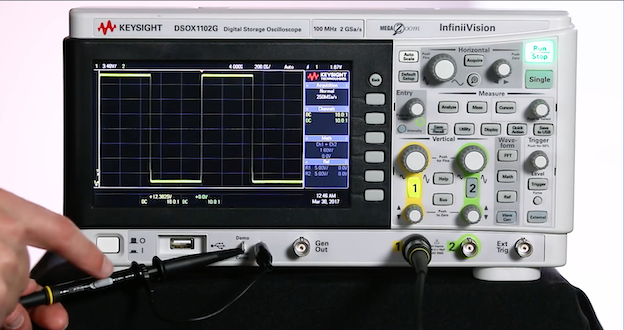

Lesson 6 - Probe Attenuation

Discusses probe attenuation, and explains how it can be used to extend the range of your oscilloscope. It also discusses how to choose the right probe attenuation for your measurements.
