Vector Network Analyzer Basics

课程
10 商品

In this course, discover what a vector network analyzer does and the theories behind the network parameter measurements.

Learn:

What a vector network analyzer measures
Understanding network parameters (H, Y, Z, S)
How to calibrate a network analyzer

查看

Lesson 1 - What is a Network Analyzer?

A vector network analyzer measures RF and microwave device properties by sending signals and calculating S-parameters from reflected and transmitted signals.

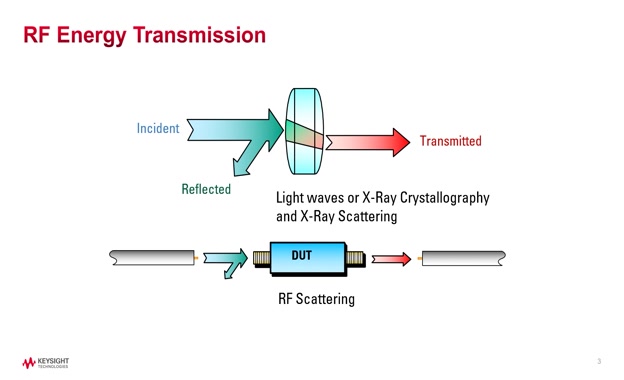

Lesson 2 - Transmission Lines and S-parameters

S-parameters describe a transmission line’s electrical properties. They are used to characterize the reflection and transmission of signals at a port.

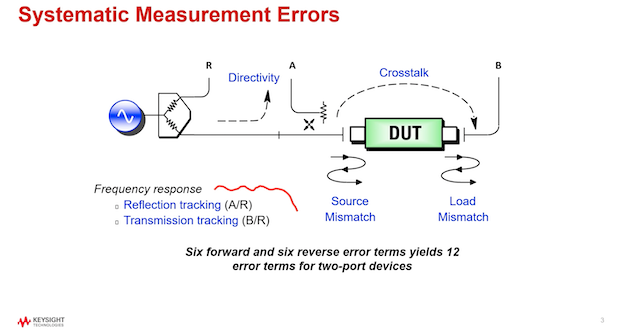

Lesson 3 - Network Analyzer Calibration

A VNA must be calibrated before it can be used. Calibration ensures that the VNA is measuring the correct values for the S-parameters.

Lesson 4 - Narrow vs. Wide IF Bandwidth

The IF bandwidth of a VNA is its frequency range. Narrow IF bandwidth offers more accuracy but lower dynamic range, while wide IF bandwidth is less accurate but has higher dynamic range.

Lesson 5 - Increasing Dynamic Range

The dynamic range of a VNA is the difference between the smallest and largest signals it can measure accurately. There are many ways to increase dynamic range.

Lesson 6 - Beyond S-parameters

Learn the limitations of S-parameters and how to use other parameters for RF devices.

产品目录

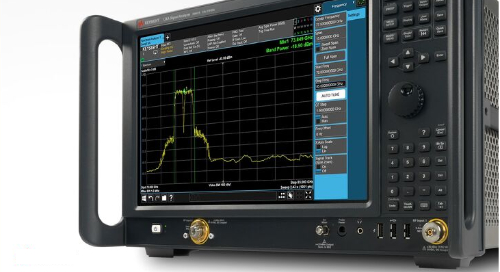

RF Products

Keysight Technologies offers a wide selection of signal generators, signal analyzers, network analyzers, and vector transceivers for testing and designing RF devices that connect the world. Customers can use these products to generate and analyze complex digitally modulated signals for modern wireless communication systems, such as 5G NR, Wi-Fi 6E, IoT, and automotive radar. These products have features such as high frequency ranges up to 110 GHz (extensible to 1.5 THz), wide bandwidths up to 4 GHz, low phase noise and high output power performance, fast switching speeds and real-time analysis capabilities, and flexible licensing and upgradeability options. Customers can also use PathWave software to simplify signal creation and measurement applications for various standards and formats.

应用文章

Understanding and Improving Network Analyzer Dynamic Range

Achieving the highest possible network analyzer dynamic range is extremely important when characterizing many types of microwave devices, and in some cases, is the key factor in determining measurement performance. To achieve the greatest dynamic, range from a network measurement system, it is important to understand the essence of dynamic range and the methods that can be employed to increase it. Armed with this knowledge, the designer can choose the method that achieves the best results with the least impact on other instrument parameters such as measurement speed.

应用文章

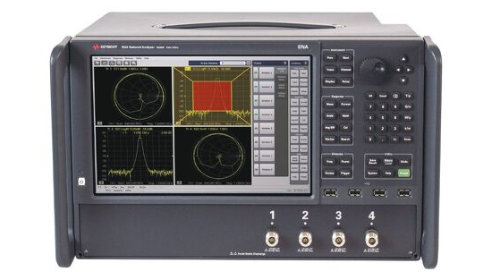

Understanding the Fundamental Principles of Vector Network Analysis
