Find the Right Network Packet Broker for Your Application

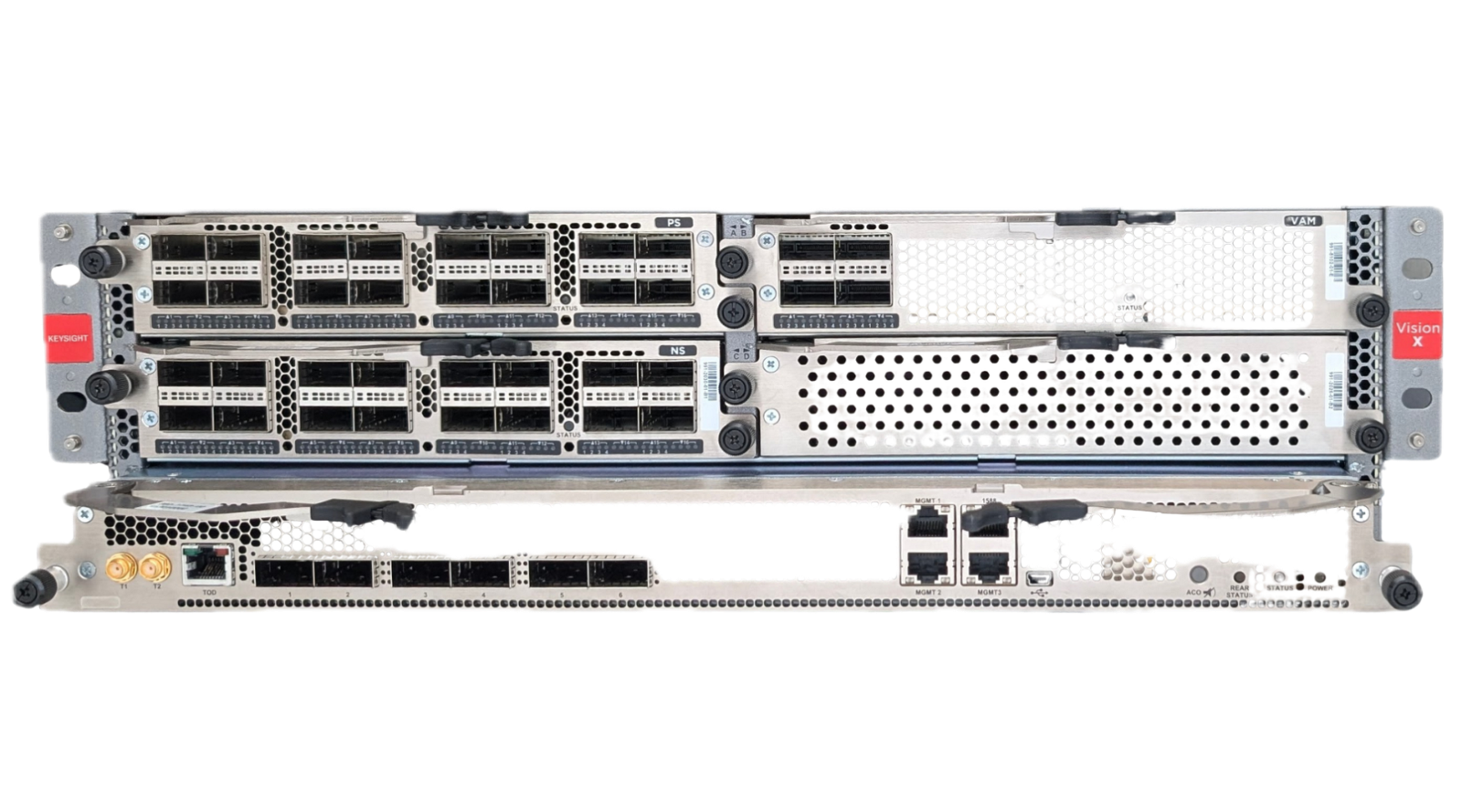

  Vision E1S Vision E10S Vision E40 Vision E100 Vision 7816 Vision E400S Vision E400P Vision ONE Vision 400 Vision X

System specifications
System height 1RU 1RU 1RU 1RU 2RU 1RU 1RU 1RU 1RU 3RU
System design Fixed Fixed Fixed Fixed Fixed Fixed Fixed Fixed Fixed Modular
Backplane capacity 46Gbps 480Gbps 720Gbps 3.2Tbps 6.4Tbps 9.2Tbps 12.8Tbps 640Gbps 9.2Tbps 6.4Gbps
Feature processing elements CPU Silicon, FPGA Silicon Silicon Silicon P4 Silicon P4 Silicon Silicon, FPGA, CPU P4 Silicon, FPGA, CPU Silicon, FPGA, CPU
Mode of operation OOB Inline & OOB Inline & OOB Inline & OOB Inline & OOB Inline & OOB Inline & OOB Inline & OOB Inline & OOB Inline & OOB
Port densities (incl. fan-out, fan-in)
1G ports 10 48 48 - - - - 48 - -
10G ports 4 48 72 128 128 152 256 64 152 108
25G ports - - - 128 128 152 256 - 152 108
40G ports - 12 18 32 64 32 64 16 32 76
50G ports - - - 64 128 152 256 - 152 108
100G ports - - - 32 64 64 128 - 64 60
200G ports - - - - - 32 64 - 32 -
400G ports - - - - - 16 32 - 16 -
Visibility feature stacks
NetStack ✔
 ✔ ✔ ✔
 ✔ ✔ ✔ ✔ ✔ ✔
PacketStack
 ✔ ✔ - - - - - ✔
 ✔ ✔
PacketStack+ - - - - - ✔
 ✔ - ✔
 -
FlowStack - - - - - - - -
 - ✔
SecureStack - - - - - - - ✔
 ✔
 ✔
AppStack ✔
 - - - - - - ✔
 ✔
 ✔
TradeStack               ✔ ✔
MobileStack - - - - - - - ✔
 ✔
 ✔
MobileStack+ - - - - - - - - - ✔
Note: Vision E400P expected release is June 2024
