ADS 2013.06 Product Release
Highlights
Advanced Design System (ADS) 2013.06 continues to enhance the industry’s leading integration of channel simulator, transient simulator and EM field solvers.
- Pre-standard extension to IBIS AMI for mid-channel re-timers (pictured)
- Power Integrity circuit simulators:
- Touchstone 2 with per-port ref impedance and mixed mode s-parameters
- Support for power integrity keywords in IBIS models - Touchstone Combiner for victim/aggressor models from 4-port VNAs
Description
Keysight's Advanced Design System (ADS) 2013.06 continues to enhance the industry’s leading integration of channel simulator, transient simulator and EM field solvers.

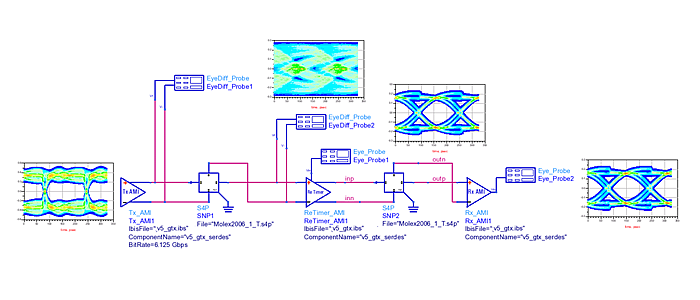

Re-timer Model
A pre-standard extension to IBIS AMI enables you to explore the design space including mid-channel non-linear components.
- Keysight continues to drive the IBIS specification forward by proposing advanced capabilities to IBIS Open Forum’s ATM Committee

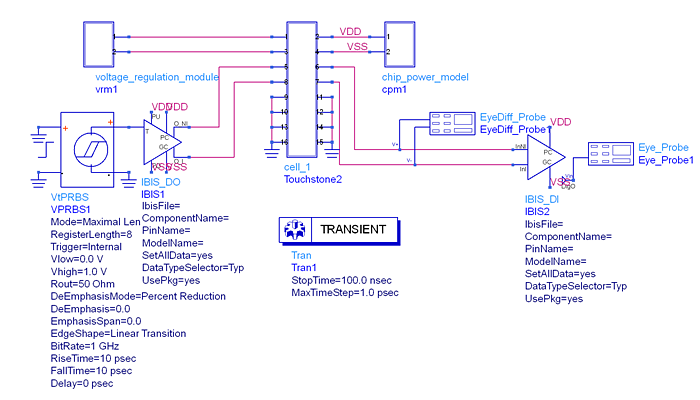

Touchstone 2 Support
- Supports Signal Integrity/Power Integrity capabilities:
- Per-port reference impedance for accurate modeling of power/ground plane coupling to signal traces
- Mixed mode network parameters for accurate modeling of differential pairs
- Industry-standard specification, ratified by IBIS Open Forum

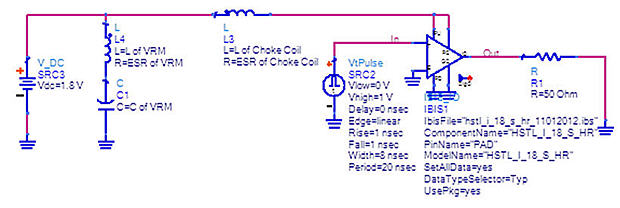

Power Integrity Keywords in IBIS Models
- Model Signal Integrity/Power Integrity effects like synchronous switching output noise
- IBIS models are portable, behavioral model that simulate faster than netlist models
- Support for [ISSO PU], [ISSO PD], [Composite Current] keywords, as specified in IBIS Open Forum docs BIRD95/98/141

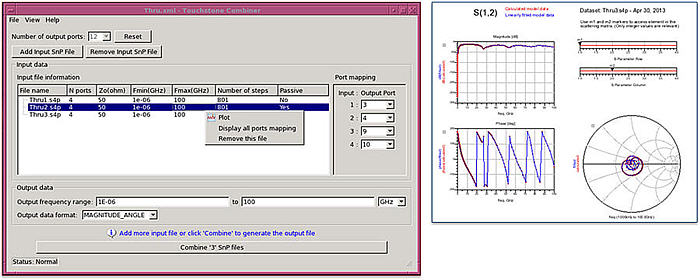

Touchstone Combiner
- Build a multiport victim/aggressor channel model out of readily available 4-port VNA measurement
- Simplifies a time-consuming and error-prone task using a simple, transparent GUI
