PathWave Model Builder (MBP) 2020 Update 2.0 Product Release
Highlights
PathWave Model Builder 2020 Update 2.0 includes the following new features and major enhancements:
- Supports Cadence URI model simulation by invoking external Spectre
- Supports new A-LFNA (E4727B) data with Measured_V1 and Measured_V2 statement
PathWave Model Builder 2020 Update 2.0 is available now.
Description
Introducing PathWave Model Builder 2020 Update 2.0
PathWave Model Builder 2020 Update 2.0 supports the Cadence Unified Reliability Interface (URI) simulation and model tuning.
- Supports the URI model simulation by invoking external Spectre.
- Supports the compact model, subckt model or binning model as a core model.
- Provides the default example project with pre-defined IMV plots: Vth/Idsat vs. time, delta Vth/Idsat vs. time, and so on.
- Supports the extend simulation for instance parameters and time.
Figure 1. Set Spectre Stress Option.

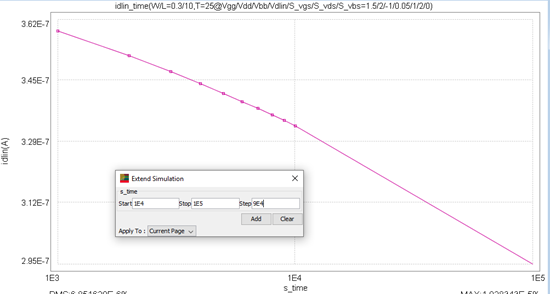

Figure 2. Extend Simulation.
- Supports M for BSIM-BULK Spectre with internal engine.
- Supports new A-LFNA (E4727B) data with Measured_V1 and Measured_V2 statement.
