特点

Keysight现在为通信和航空航天等应用提供了一系列更高频率的衰减器。 这些衰减器损耗低、寿命长，可重复性强，可保护测试平台避免故障、重新校准、停机和生产损失

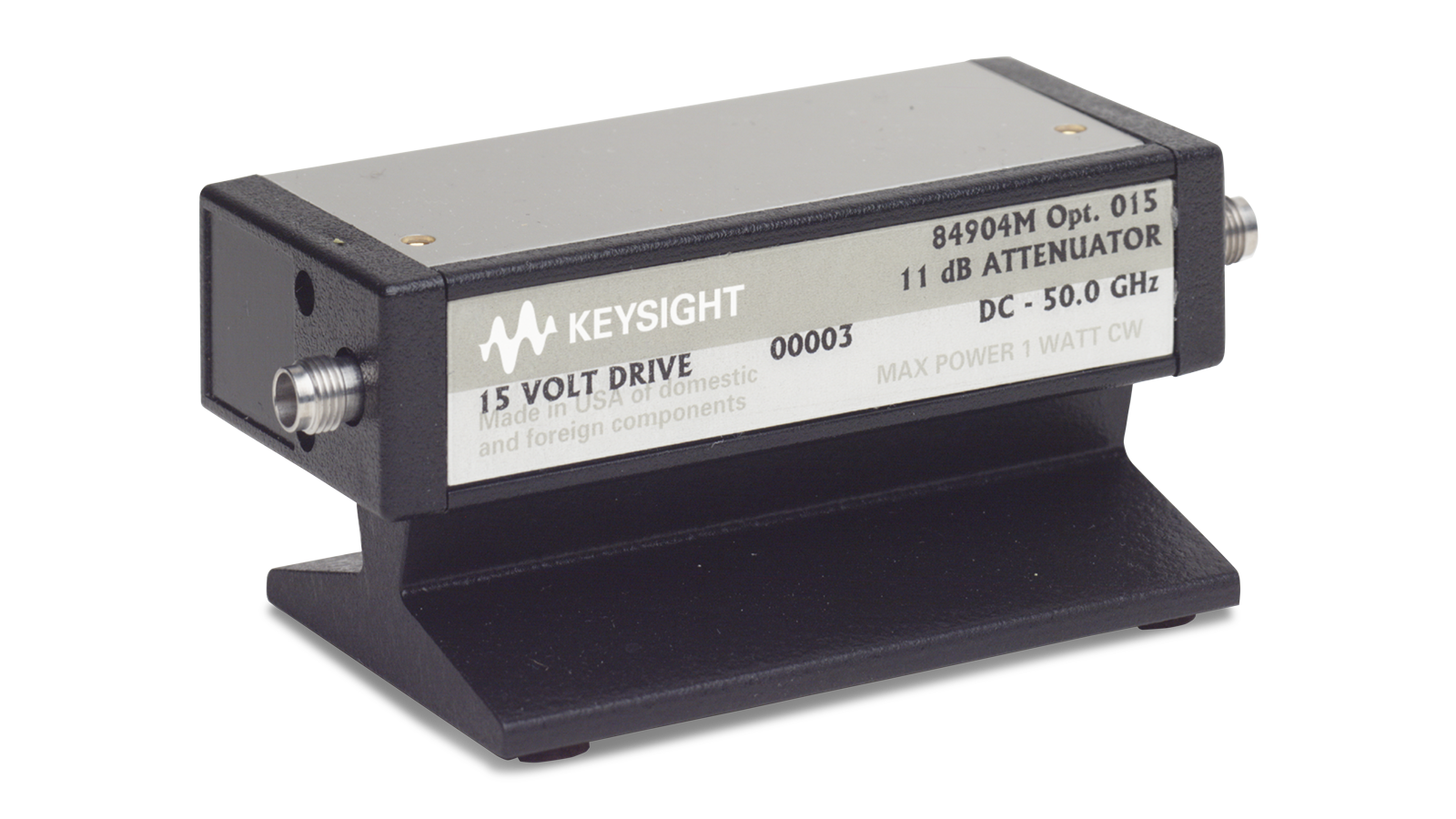

Keysight 84904M是一款可编程步进衰减器，1 dB步进衰减范围为0至11 dB

卓越的射频性能

  • 频率范围：直流至50 GHz
  • 插入损耗：0.8 dB+0.04 dB/GHz（直流至40 GHz），3.0（至50 GHz）
  • 最大SWR：1.3至12.4 GHz，1.7至34 GHz，1.8至40 GHz，3.0至50 GHz

    • 重复性和使用寿命：0.03 dB（典型）
  • 每节500万次（典型）

    • 功率处理

  • 最大射频输入功率：1 W（平均值），50 W（峰值）

    • 特点

  • 连接器类型：选择2.4毫米阴极连接器，2.4毫米阳极/阴极
    • 84904M Programmable Step Attenuator

    想要深入了解 84904M？

    特色资源

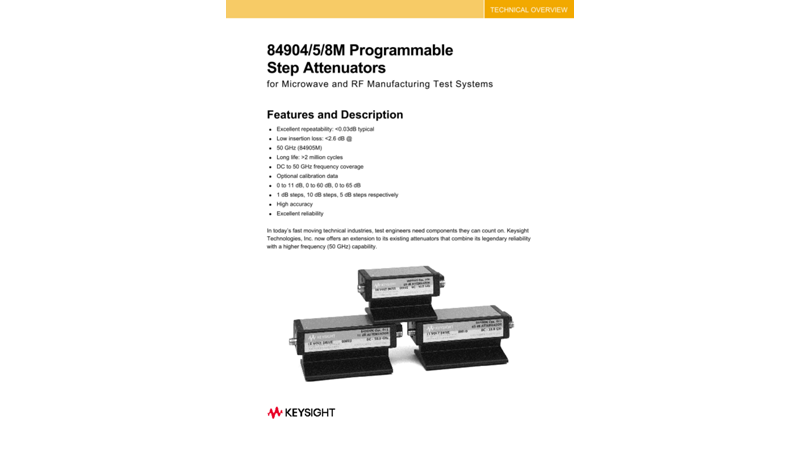

    Technical Overviews 2023.10.26

    84904/5/8M Programmable Step Attenuators for Microwave and RF Manufacturing Test

    84904/5/8M Programmable Step Attenuators for Microwave and RF Manufacturing Test

    This technical overview describes the 84904/5/8M series programmable step attenuators (50 GHz). It provides details on specifications, features, product benefits, attenuation switching, driver circuits, GPIB switching, calibration data, solenoid pin guide, attenuator activation guide, data uncertainties, attenuation accuracy tables, mechanical information, ordering information, available options and accessories. It offers mechanical diagrams on driver and indicator circuits, section diagrams, and product outlines.

    2023.10.26

    Product Fact Sheets 2017.12.01

    RF & Microwave Programmable Step Attenuators

    RF & Microwave Programmable Step Attenuators

    This two-page quick fact sheet highlights the key features and specifications for Keysight’s RF & Microwave Programmable Step Attenuators.

    2017.12.01

    Configuration Guides 2017.12.02

    11713B/C Attenuator/Switch Drivers

    11713B/C Attenuator/Switch Drivers

    This configuration guide will assist you through the process of configuring a switching system using the Keysight 11713B/C attenuator/switch drivers.

    2017.12.02

    Brochures 2020.08.13

    RF & Microwave Attenuators

    RF & Microwave Attenuators

    This brochure eases selection of Keysight attenuators by providing a brief overview and specifications of fixed, manual, and programmable step attenuators.

    2020.08.13

    宣传单 2014.08.01

    微波测试附件 40/50/67 GHz

    微波测试附件 40/50/67 GHz

    Brochure for high frequency RF and microwave test accessories ranging from 40/50/67 GHz for radar and satellite testing, wireless communications, microwave backhaul and more.

    2014.08.01
