特点

Keysight 85320A 测试混频器模块在与 85309B 本振/中频分配单元配合使用时，可以将微波信号下变频为中频信号。

  • 宽带工作范围：300 MHz 至 3 GHz、1 至 26.5 GHz
  • 在 2 至 50 GHz 带宽范围内工作时，需要使用特殊选件 85320A-H50。 请联系是德科技公司，获取更多信息。
  • 在 2 至 18 GHz 的基本模式中工作时，灵敏度最佳，变频损耗最小
  • 双工器将 LO 输入和 IF 输出整合到单个同轴连接器上。

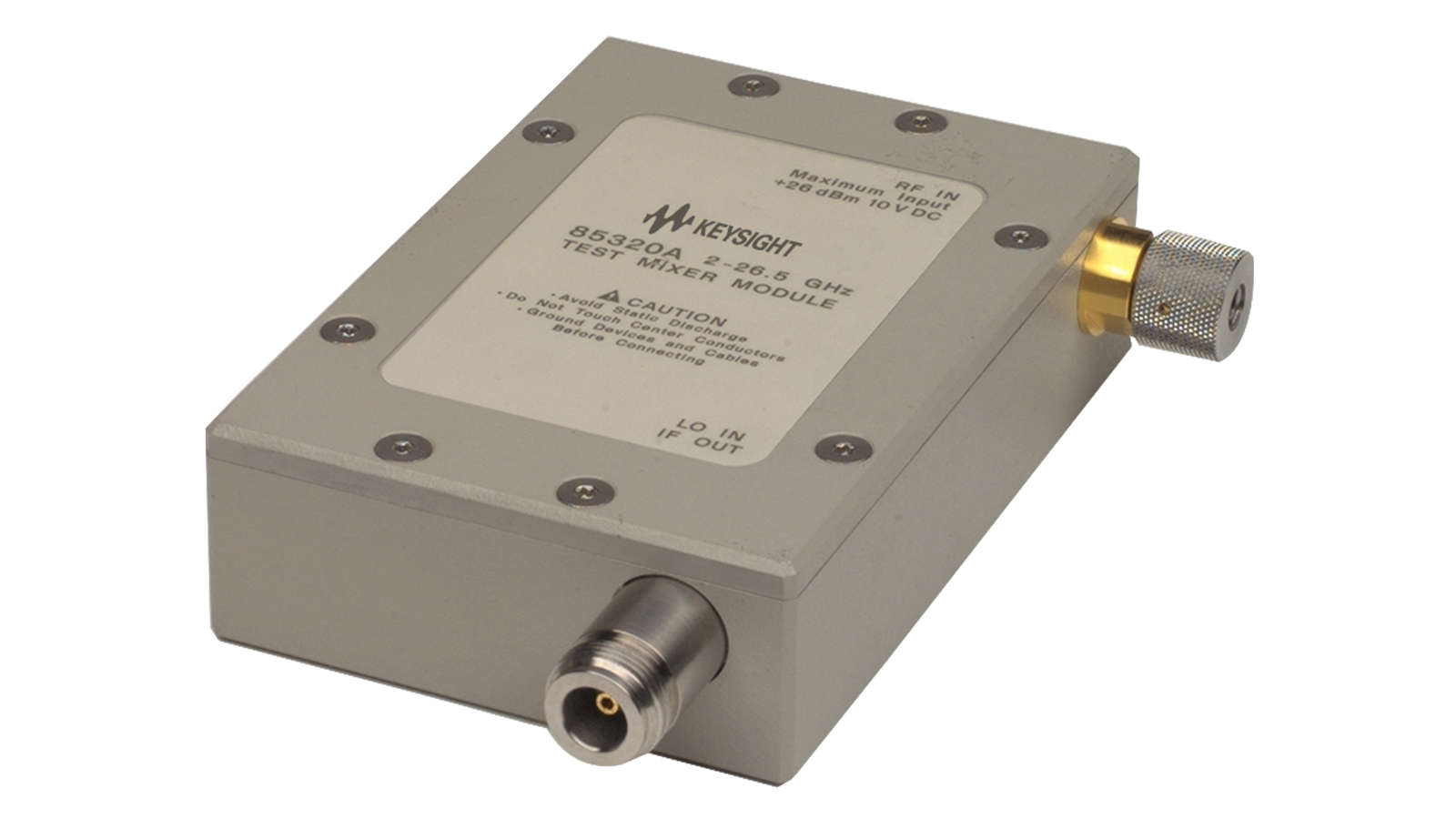

85320A Test Mixer Module

想要深入了解 85320A？

特色资源

User Manuals 2023.10.31

Operation and Service Guide 85320A/B Mixer Modules - 2 to 26.5 GHz

Operation and Service Guide 85320A/B Mixer Modules - 2 to 26.5 GHz

This document describes the Keysight 85320A test mixer and Keysight 85320B reference mixer operate from 2 to 26.5 GHz. They are designed for use with the Keysight 85309B Distributed Frequency Converter. These mixers work with the Keysight 85309B to down convert RF frequencies to the 20 MHz IF signal required by the N5222A network analyzer.

2023.10.31

User Manuals 1998.08.25

85320A and 85320B Operating and Service Manual Supplement

85320A and 85320B Operating and Service Manual Supplement

The 85320A H50 and the 85320B H50 are identical in function to the standard 85320A and 85320B except that the frequency range of operation is 2 to 50 GHz instead of 2 to 26.5 GHz.

1998.08.25

Technical Overviews 2017.12.02

Antenna Test

Antenna Test

Keysight Technologies provides many of the components required to make accurate antenna and radar cross-section (RCS) measurements. Use this guide to: understand how Keysight instruments can be integrated into various configurations, learn about interface requirements between components, understand issues related to selecting the equipment required to make antenna measurements, and learn how to migrate from the 8510 network analyzer or 8530 microwave receiver to the PNA series network analyzer.

2017.12.02

User Manuals 2023.10.30

Operation and Service Guide 85320A/B H20 Mixer Modules - 0.1 to 3 GHz

Operation and Service Guide 85320A/B H20 Mixer Modules - 0.1 to 3 GHz

This document describes the differences in the 85320A H20 and 85320B H20 compared to the standard 85320A and 85320B.The 85320A H20 and the 85320B H20 are identical in function to the standard 85320A and 85320B except that the frequency range of operation is 0.1 to 3.0 GHz instead of 2.0 to 26.5 GHz. Fundamental mixing is the only mode of operation. The 85320A H20 test mixer and the 85320B H20 reference mixer are designed for use with the 85309B Option 400 or 401 or 402.

2023.10.30
