HIGHLIGHTS

  • 信号切换：高达 224 x 4 矩阵
  • 负载切换：高达 32 通道 x 30Amp、64 通道 x 7.5Amp 和 80 通道 x 5Amp 以及 192 通道 x 2Amp
  • 射频开关：多达 4 个 Quad 1 x 4 射频开关卡（DC-3GHz）
  • 电源：高达 400W 的模块化电源
  • 测量：6.5 位数字万用表、2 通道 350 MHz 计数器
  • 激励：单通道 16 位 30 MHz ARB、4 通道 16 位 DAC
  • 额外的仪器：4 通道 500 MHz 示波器，2 通道和 4 通道数字转换器电子负载能力
  • 更多信息，请访问： 是德TS-5020 产品指南

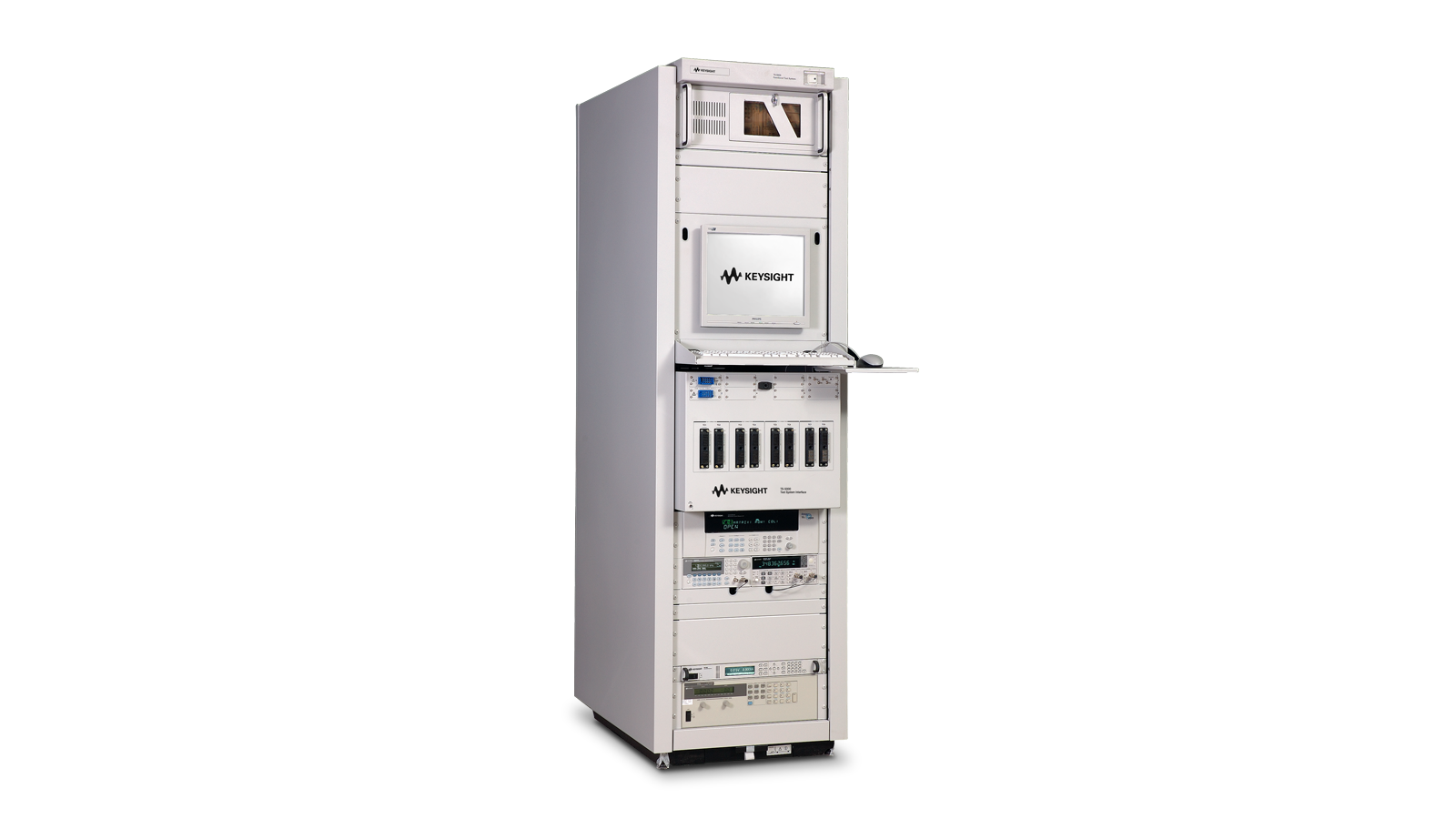

是德TS-5020 汽车功能测试系统是一个低成本、可扩展的测试系统，其“恰好够用”的测试功能专门用于测试中等复杂程度的电子控制模块（例如 TPMS、RKE 和车身电子模块）。

了解如何使用是德 TestExec SL 软件加快软件开发和测试集成。

阅读 TS-5020 和 TS-5040 配置指南，了解如何配置系统。是德 TS-5020 和 TS-5040 汽车功能测试系统

主要技术指标

下载技术资料
应用
n/a
外观因素
Complete Test System
仪器
GPIB
LXI
串行通信
CAN Single or Dual
ISO 9141
J1850
J1939
Stimulus/Measurement
1-ch 14-bit ARB
2-ch 225MHz Counter
4-ch 16-bit DAC
6.5-Digit DMM
Typ up to 400W Power Supply
类型
Automotive Electronics Functional Test System
应用
外观因素
仪器
串行通信
Stimulus/Measurement
类型
n/a
Complete Test System
GPIB
LXI
CAN Single or Dual
ISO 9141
J1850
J1939
1-ch 14-bit ARB
2-ch 225MHz Counter
4-ch 16-bit DAC
6.5-Digit DMM
Typ up to 400W Power Supply
Automotive Electronics Functional Test System
查看更多
应用:
n/a
外观因素 :
Complete Test System
仪器:
GPIB
LXI
串行通信:
CAN Single or Dual
ISO 9141
J1850
J1939
Stimulus/Measurement:
1-ch 14-bit ARB
2-ch 225MHz Counter
4-ch 16-bit DAC
6.5-Digit DMM
Typ up to 400W Power Supply
类型:
Automotive Electronics Functional Test System

Interested in a E2240A?

Extend the capabilities for your 汽车电子功能测试系统（胎压监测系统追加解决方案）

软件
查看所有软件
附件
查看所有附件
服务
查看所有服务
支持
查看所有支持

Featured Resources for E2240A Automotive Electronics Functional Test System (with Tire Pressure Monitoring System add-on Solution)

Technical Overviews 2017.12.02

TS-5020 Automotive Electronics Functional Test System

TS-5020 Automotive Electronics Functional Test System

The TS-5020 addresses the requirement for a lower cost measurement system, catered to a medium pin count range with light duty switching.

2017.12.02

User Manuals 2023.10.25

Keysight TS-5020 and TS-5040 Compact Functional Test System Wiring Guide and Hardware Reference

Keysight TS-5020 and TS-5040 Compact Functional Test System Wiring Guide and Hardware Reference

Wiring Guide and Hardware Reference for TS-5020 and TS-5040 Compact Functional Test System

2023.10.25

Data Sheets 2017.12.01

TS-5000 Family Multi-Channel Load Cards

TS-5000 Family Multi-Channel Load Cards

Keysight Technologies’ TS-5000 family load cards are a cost-effective and reliable set of multi-channeled load cards designed specifically for automotive functional testing.

2017.12.01

Installation Guides 2023.10.25

Keysight TS-5020 and TS-5040 Compact Functional Test System Site Preparation and Installation Guide

Keysight TS-5020 and TS-5040 Compact Functional Test System Site Preparation and Installation Guide

Site Preparation and Installation Guide of TS-5020 and TS-5040 Compact Functional Test System

2023.10.25

Application Notes 2014.07.31

Creating Hardware Handler in C/C++ for Keysight TestExec SL

Creating Hardware Handler in C/C++ for Keysight TestExec SL

Learn how to create a hardware handler in C/C++ to enhance TestExec SL’s ability to control devices by communicating directly with the instrument’s driver.

2014.07.31

Application Notes 2014.07.31

Configuring Signal and Load Switching Using TestExec SL

Configuring Signal and Load Switching Using TestExec SL

Find out how easy it is to use TestExec SL software to set up and configure signal switching and load switching to shorten test development time.

2014.07.31
