特点

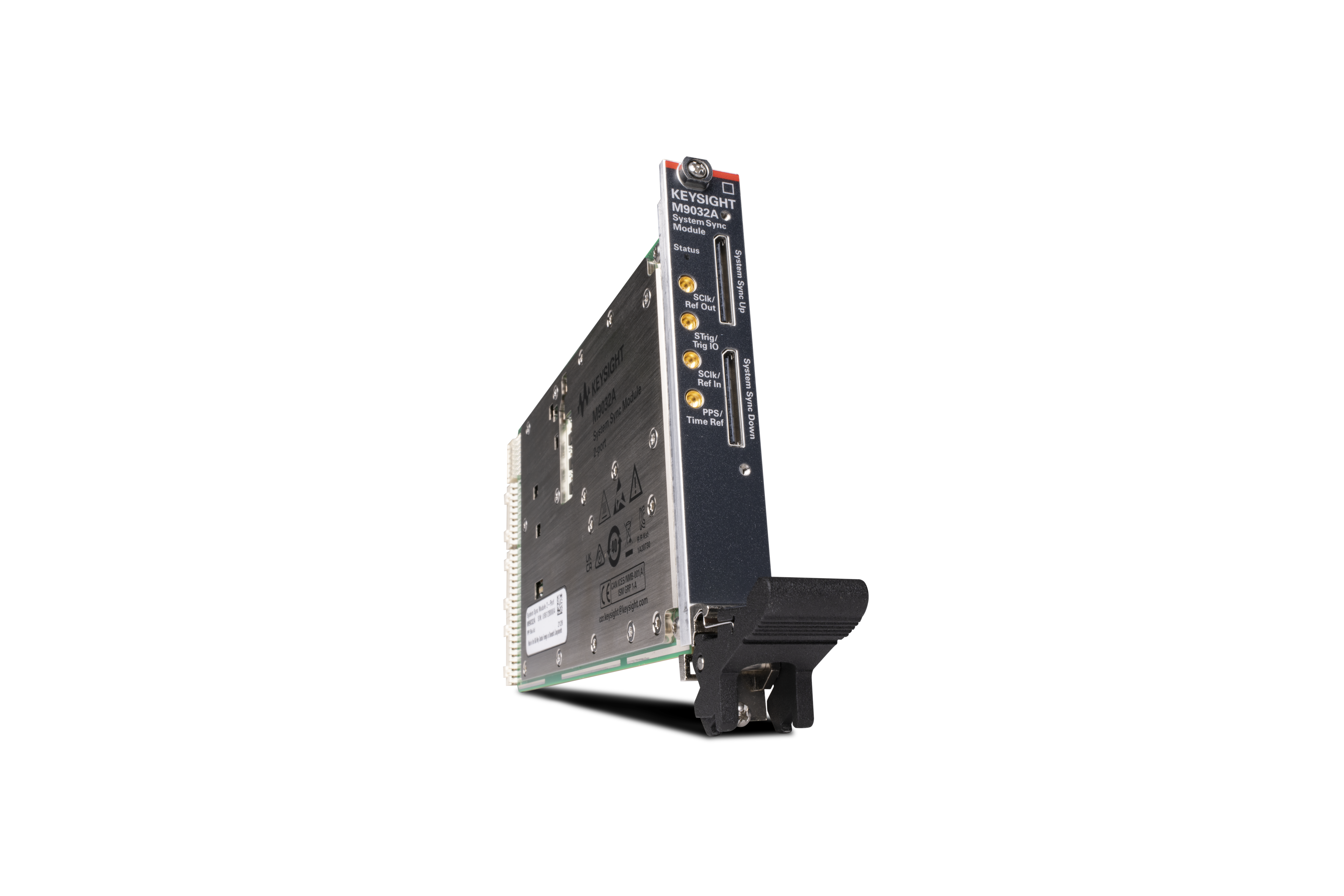

M9032A PXIe 系统同步模块是一款单插槽、2 端口模块，可为是德科技模块化仪器提供多模块、多机箱同步和触发能力。
- 单个 PXIe 插槽
- Virtex UltraScale+ VU3P FPGA 与 PathWave 结合使用
- 高质量的恒温晶体振荡器（OCXO）参考时钟
- PathWave 测试同步可执行程序提供支持
- 低延迟 LVDS 触发器
- 通过多千兆收发信机（MGT）链路提供高带宽/高速信息
主要技术指标
M9032A Software

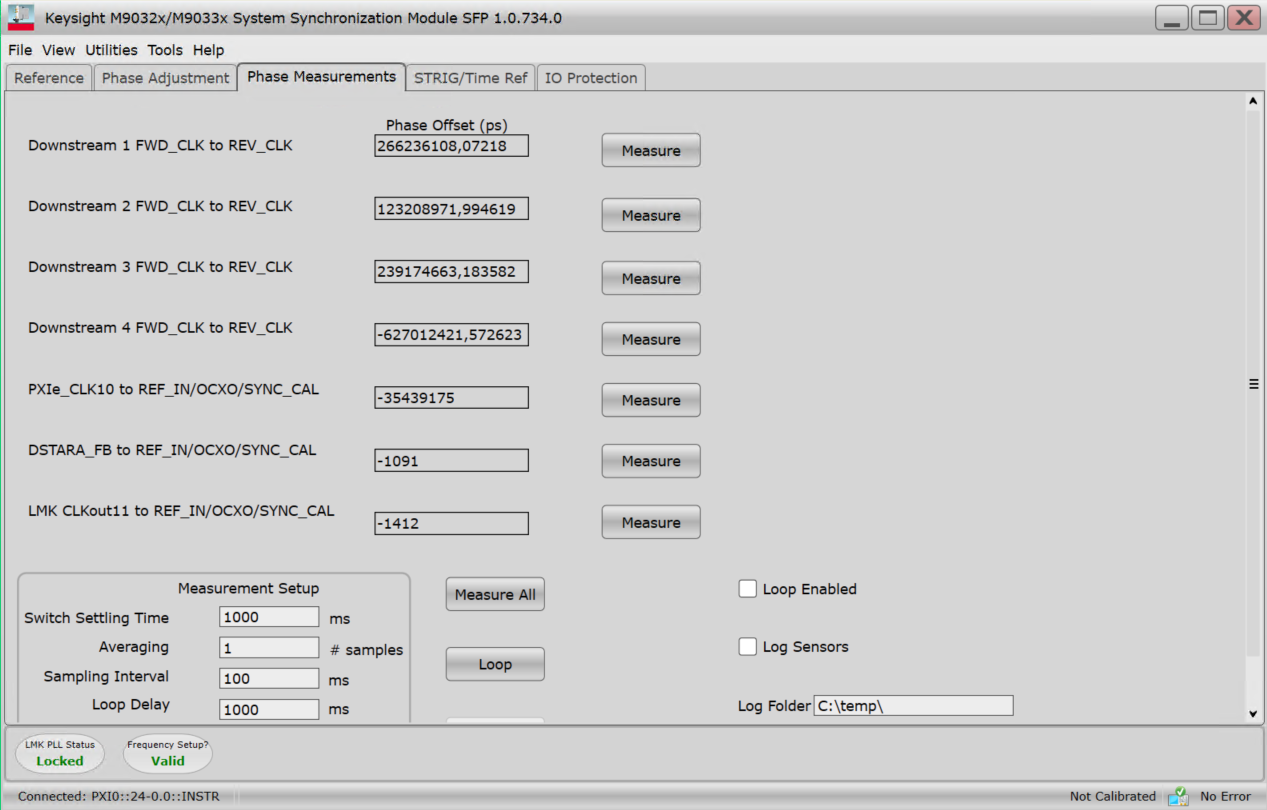

The M9032A has a Soft Front Panel (SFP) that provides a graphical user interface to the system sync module. It allows the user to set up the most commonly used functionalities of the module. The SFP also gives you the ability to check the module's connection status, configure the reference clock and IO settings, and perform firmware udpates.
PathWave Test Sync Executive

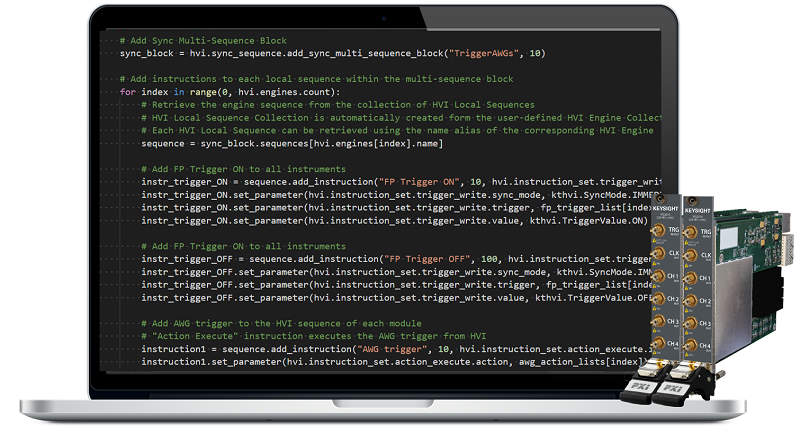

PathWave Test Sync Executive enables rapid development of high performance, multi-channel, real-time synchronous solutions. It can be enabled on the M9032A module with a software license and has seamless interaction with Pathwave FPGA. Test Sync Executive features:
- Transparent multi-module synchronization
- Real-time synchronous execution
- Time-deterministic hardware-based execution
PathWave FPGA

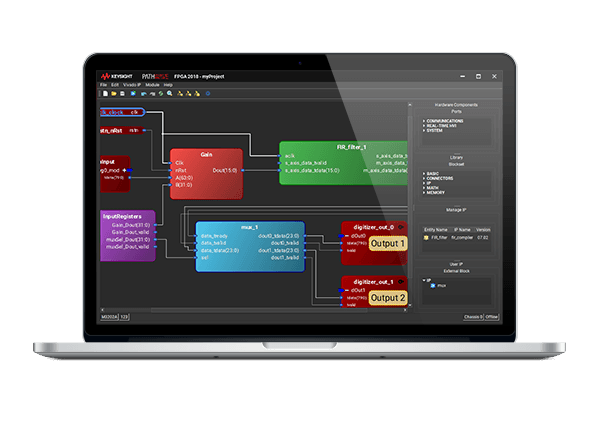

PathWave FPGA is a system-level FPGA development environment which enables you to open and customize the M9032A. With a PathWave FPGA license, you can access to the user-programmable FPGA and can insert your custom logic into the instrument. You can begin from HDL or a design in the included library and add or import Vivado and Matlab components. Key benefits:
- Process signals in real time or accelerate bottleneck operations by running as hardware-in-the-loop
- Achieve your test requirements by inserting your own IP into the instrument
- Scale-up designs or channel counts by adding multiple M9032A modules
