特点

  • 带宽：12 GHz（配合使用 1169A InfiniiMax 放大器和 N5425A ZIF 探头）
  • 上升时间：33 ps（仅探头）
  • 输入电容：350 fF（差分），520 fF（单端）
  • 钨探测丝轴直径：22 微米
  • 点半径：<0.1 微米
  • 100 密耳长钨丝

N2884A InfiniiMax 差分细线探针是用于探测有源集成电路（IC）的高保真度、大带宽解决方案。 它面向的用户是使用示波器调试和测试 IC 的研发和测试工程师。 N2884A 提供了一种创新的差分探测方法。

利用是德科技的低成本 ZIF 探头技术，N2884A 能够在整个 12 GHz 带宽上提供平坦的频率响应，显著消除了失真和负载效应所带来的带内谐振，避免探头受到影响。 市场上其他的解决方案通常测量的是电压随着接地点到探测点间距增加所发生的变化，而 N2884A 测量的是电压与被测器件上相邻本地接地（或其他节点）之间的关系。 这样可以更好地抑制共模噪声，在测量中实现出色的信号完整性。

N2884A 配有一个探头臂和一组 5 个探针。 如图所示，探头臂与 Wentworth Laboratories 提供的微型定位器兼容。 您可以直接从 Wentworth Laboratories 订货――www.wentworthlabs.com，

也可以从是德科技订货。 如果您通过是德科技订货，则必须订购以下两个部件：

  • N2884-64702（Wentworth 2026-90409 PVX 400-M：手动线性机械手磁性基座）
  • N2884-64703（Wentworth 5-00-4711 短鼻铰接短臂前端）

如需查看如何使用 N2884A InfiniiMax 细线探针，请点击此处。

InfiniiMax Differential Fine-Wire Probing Tips

想要深入了解 N2884A？

关于 N2884A InfiniiMax 差分细线探针的特色资源

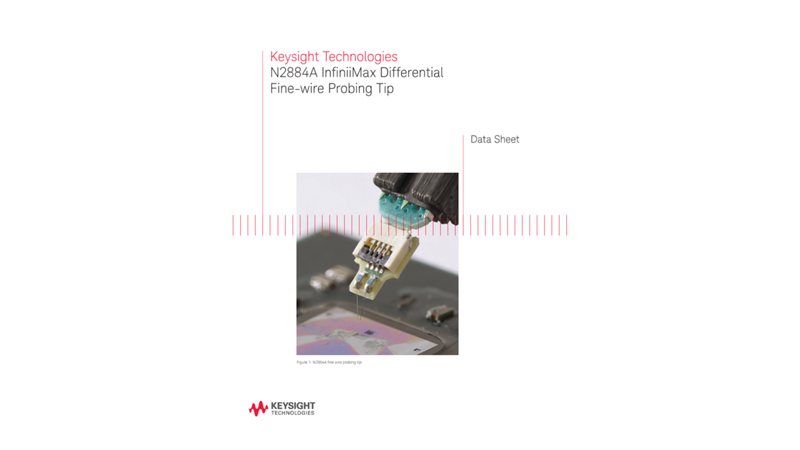

Data Sheets 2017.12.01

N2884A InfiniiMax Differential Fine-wire Probing Tip

N2884A InfiniiMax Differential Fine-wire Probing Tip

The N2884A InfiniiMax differential fine-wire probing tip is a high fidelity and high bandwidth solution to probe an active IC, targeted for R&D and test engineers using an oscilloscope for debugging and testing IC's. This provides an innovative differential probing approach that is unmatched by any competitors in the market.

2017.12.01

Technical Overviews 2021.09.24

Oscilloscope Probes and Accessories

Oscilloscope Probes and Accessories

To get the most out of your oscilloscope, you need the right probes and accessories for your applications. Keysight offers a wide selection of high-quality probes and accessories for your scope.

2021.09.24

User Manuals 2023.10.16

1168/9B-Series Differential and Single-Ended Probes User’s Guide

1168/9B-Series Differential and Single-Ended Probes User’s Guide

This guide describes how to set up and use the 1168/9B-series probes with the recommended probe heads.

2023.10.16

Reference Guides 2009.11.01

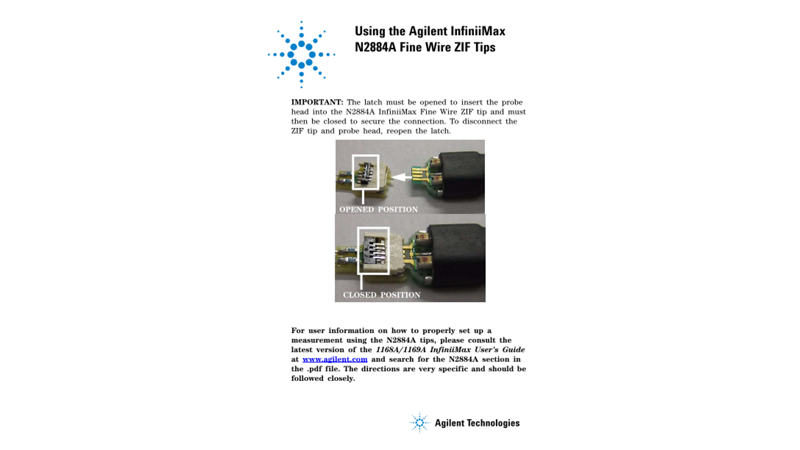

Using the N2884A Infiniimax Differential Fine-Wire Probe Tips

Using the N2884A Infiniimax Differential Fine-Wire Probe Tips

This document contains tips for using the N2884A.

2009.11.01

Data Sheets 2024.06.26

Infiniium Oscilloscope Probes and Accessories

Infiniium Oscilloscope Probes and Accessories

To get the most out of your Keysight Infiniium oscilloscope, you need the right probes and accessories for your particular applications. Whether you need the high bandwidth and low loading of an active probe, an easy way to connect to surface mount ICs, or a passive probe to measure high voltages, there’s a wide selection of high-quality probes and accessories for your Infiniium oscilloscope. The Infiniium probes and accessories data sheet provides you the overview of all probes and accessories recommended for Infiniium oscilloscopes.

2024.06.26
