The N9084C is discontinued after June 1, 2019. The replacement model is the N9084EM0E X-Series Measurement Application with KeysightCare.
Signal analysis
Compliant with ZigBee (IEEE 802.15.4) and Z-Wave RF transmitter tests
One-button measurements with pass/fail per the standard
Runs inside UXA, PXA, MXA, EXA, and CXA X-Series signal analyzers with multi-touch UI
Measurements
Transmitter analysis of channel power, adjacent carrier power (ACP), spectrum emission mask (SEM)

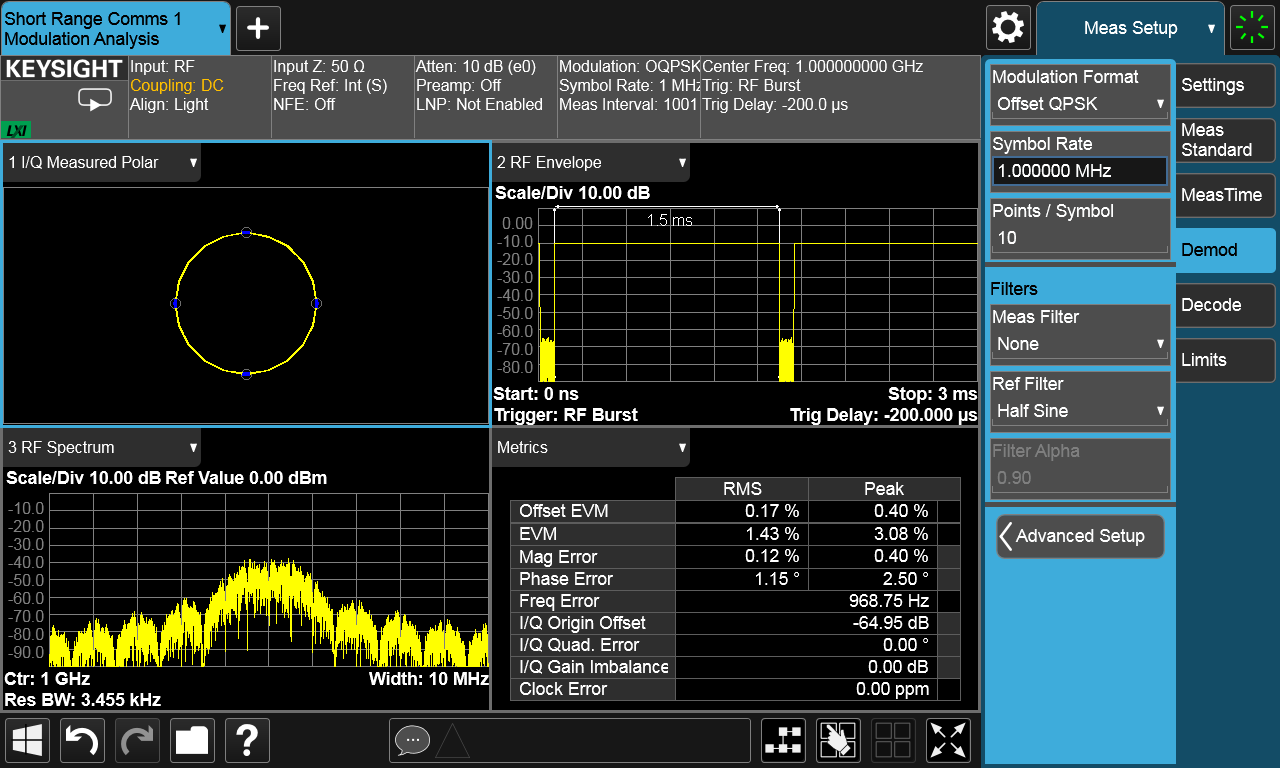

Modulation accuracy: Various demodulation results including demod bits and decode results, IQ measurement in time, frequency, polar, and eye diagram
Demod errors and responses to visualize signal quality parameters for troubleshooting
Multiple result views: Spectrum, time, IQ measurement traces, numeric display
Other features
For X-Series analyzers with multi-touch UI (N90x0B)
License key upgradeable
Fixed and transportable license available
SCPI remote user interface
The N9084C short range communications measurement application is one in a common library of more than 25 measurement applications in the Keysight X-Series signal analyzers. Transforming the X-Series signal analyzers into standard-based transmitter testers, the application provides fast, one-button RF conformance measurements to help you design, evaluate, and manufacture your ZigBee and Z-Wave RF transmitters.
