特点

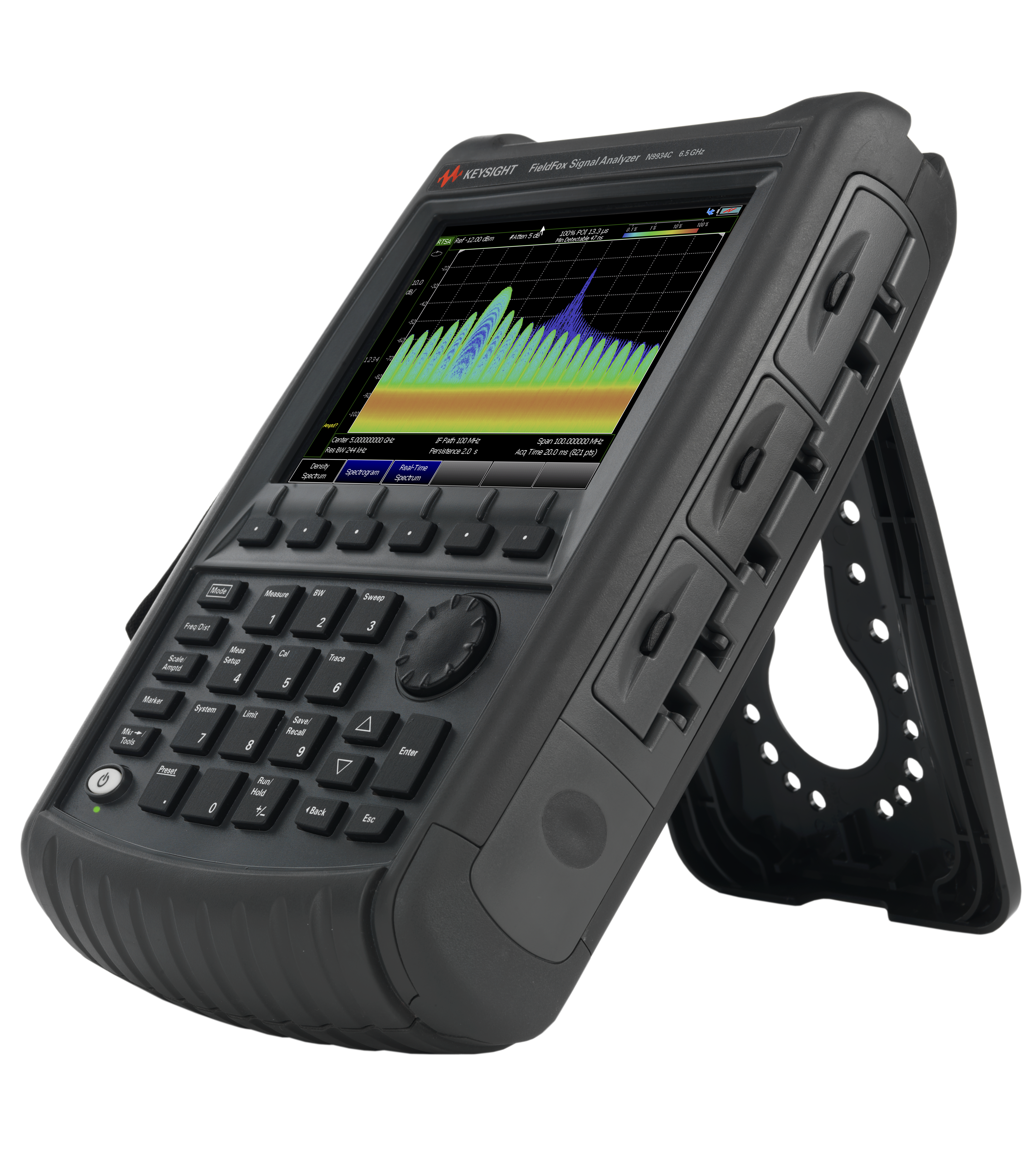

Analyze Anywhere with FieldFox Portable Analyzer

Unleash your analysis potential with high-performance spectrum analysis from 3 kHz to 6.5 GHz. Choose the software-defined FieldFox configuration that best meets your evolving needs.

  • Capture elusive signals with up to 120 MHz gap-free, real-time bandwidth.
  • Make accurate spectrum analyzer measurements (± 0.3 dB) without warmup.
  • Perform over-the-air measurements for 5G NR and LTE.
  • Use GPS/GNSS for geolocation and timestamping.
  • Carry one lightweight unit at 3.4 kg (7.4 lb).

What's included:

  • Base model: spectrum analyzer (SA)
  • AC/DC adapter
  • 符合当地标准的电源线
  • Rechargeable Li-ion battery
  • Soft carrying case with backpack and shoulder straps
  • 快速参考指南
查看技术概述

主要技术指标

下载技术资料
内置端口数量
2
最大频率
6.5 GHz
Number of Internal Sources
1
VNA Series
FieldFox
VNA Type
Handheld
内置端口数量
最大频率
Number of Internal Sources
VNA Series
VNA Type
2
6.5 GHz
1
FieldFox
Handheld
查看更多
应用:
Over-the-Air LTE FDD
5G NR
Over-the-Air LTE FDD
带宽:
n/a
带宽选件:
n/a
Best Speed at 1001 Point, 1 Sweep:
n/a
1 GHz 时的 DANL:
-164 dBm
外观因素 :
Handheld
Max. Bandwidth:
120 MHz
最大分析带宽:
120 MHz
Maximum Bandwidth:
120 MHz
最大频率:
6.5 GHz
最大实时带宽:
120 MHz
测量功能:
Signal analysis
Real-time spectrum analysis
CAT/VNA 起始频率:
3 kHz
内置端口数量:
2
Number of Internal Sources:
1
总体幅度精度:
±0.20 dB
1 GHz 时，1 MHz 频偏处的相位噪声:
-124 dBc/Hz
1 GHz 时，10 kHz 频偏处的相位噪声:
-112 dBc/Hz
1 GHz 时，30 kHz 频偏处的相位噪声:
-113 dBc/Hz
SA 起始频率:
3 kHz
频谱分析仪:
n/a
标准衰减器衰减范围:
0 to 40 dB
标准衰减器步进:
5 dB/step
System Dynamic Range:
>104 dBc
三阶截获（TOI），1 GHz 时:
+10 dBm
类型:
Spectrum Analyzer
VNA Series:
FieldFox
VNA Type:
Handheld

N9934C FieldFox Handheld Software

Make your FieldFox handheld analyzer more capable with convenient software upgrades — engineered to deliver precise measurements in the field.

  • Carry one portable instrument that handles routine maintenance and in-depth troubleshooting.
  • Configure as a spectrum analyzer, built-in power meter, vector voltmeter, and more.
  • Order software pre-installed or upgrade an existing instrument.
N9934C FieldFox Handheld Software
