特点

  • 频率范围：10 MHz – 50 GHz / 10 MHz – 53 GHz（选件 053）
  • 拥有 USB 连通性及宽广的动态范围（-70 至 +20 dBm（10 MHz 至 50 GHz 频率） / -70 至 0 dBm（> 50 GHz 至 53 GHz 频率）），适用于小信号测量
  • 快速实时测量，高达 50,000 个读数/秒
  • 1 MSa/s 的可变采样率和 1 MSa 的数据存储器支持长时间采样
  • 以零静寂时间进行实时测量，可确保对每一个连续脉冲都加以测量
  • 平均模式时间选择性功能能够利用整个动态范围执行平均功率测量和时间选择性平均功率测量
  • 内置归零和自动校准功能可以节省测量时间，降低测量不确定度
  • 仪器现在内置 BenchVue 软件许可证（BV0007B）。 BenchVue 能帮助您轻松连接和控制仪器，自动执行测试序列

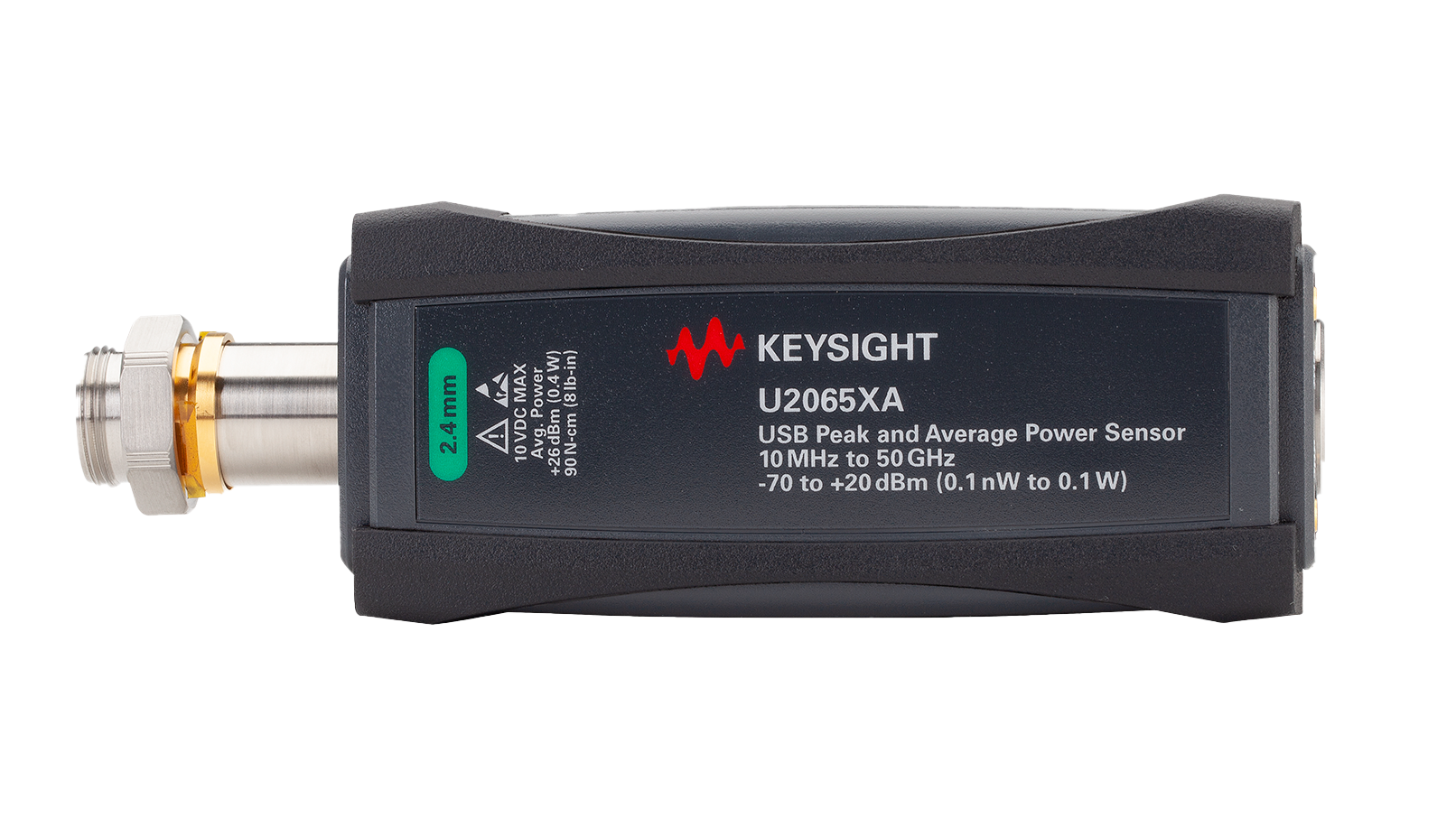

U2065XA Wide Dynamic Range Peak and Average Power Sensor

想要深入了解 U2065XA？

扩展 10 MHz 至 50/53 GHz USB 宽动态范围峰值功率/平均功率传感器的功能
